Profit Scanner Bot: Alerts and Charts on Telegram

Profit Scanner Bot is the Telegram bot of the Profit Scanner app. Once it is linked to your account, it does two things:

• it sends your Price Alerts and Screener Alerts to Telegram, as they happen;
• it draws a chart of any US stock or crypto pair on request, with the indicators you choose, and with your own screener formulas plotted on it as lines, histograms and buy/sell arrows.

This article covers linking the bot, requesting charts, and everything a chart can show.

Linking the bot to the app

1. In the app, open the menu and choose the Telegram linking option.

2. Telegram opens a chat with @profit_scanner_bot.

3. Send /start. The bot replies with your chat ID, registers it, and gives you a link to your personal bot — one of @profitscanner0bot to @profitscanner9bot, decided by your chat ID.

4. Open that link and tap START in your personal bot, or send it any message.

5. Back in the app, the linking screen shows your Telegram name. The link is complete.

Why a personal bot? Telegram limits how many messages a single bot may send each second. To keep alerts on time, they are spread across ten bots, and each account is served by one of them. A Telegram bot can only message someone who has started it, so until you start your personal bot, the main bot can pass on only the first alert of each day, together with a reminder of which personal bot is yours.

If the bot is removed from your Telegram chat list, the link becomes inactive. Link it again from the same menu.

Alerts and charts are for your own account. Forwarding or re-posting them to other people, groups or channels, by hand or automatically, is not allowed under the Terms of Use, and can get your Telegram alerts or your account switched off.

Who can request charts

Charts work in the main bot and in your personal bot alike, for accounts that are linked and have opened the app within the last three days.

• Premium accounts can request as many charts as they like, within fair use.
• Free accounts can request six charts a day.
• The chart settings (/indicator, /theme, /bars) are free for every linked account and do not count as charts.

To keep the service responsive, each account can request one chart every 5 seconds, dropping to one every 15 seconds after 20 charts in 5 minutes, and at most 100 charts an hour and 500 a day. The zoom and refresh buttons count as charts. Requesting charts with scripts or macros is not allowed; see the Terms of Use.

Requesting a chart

/chart <symbol> [timeframe] [bars] [indicators]
/<symbol> [timeframe] [bars] [indicators]

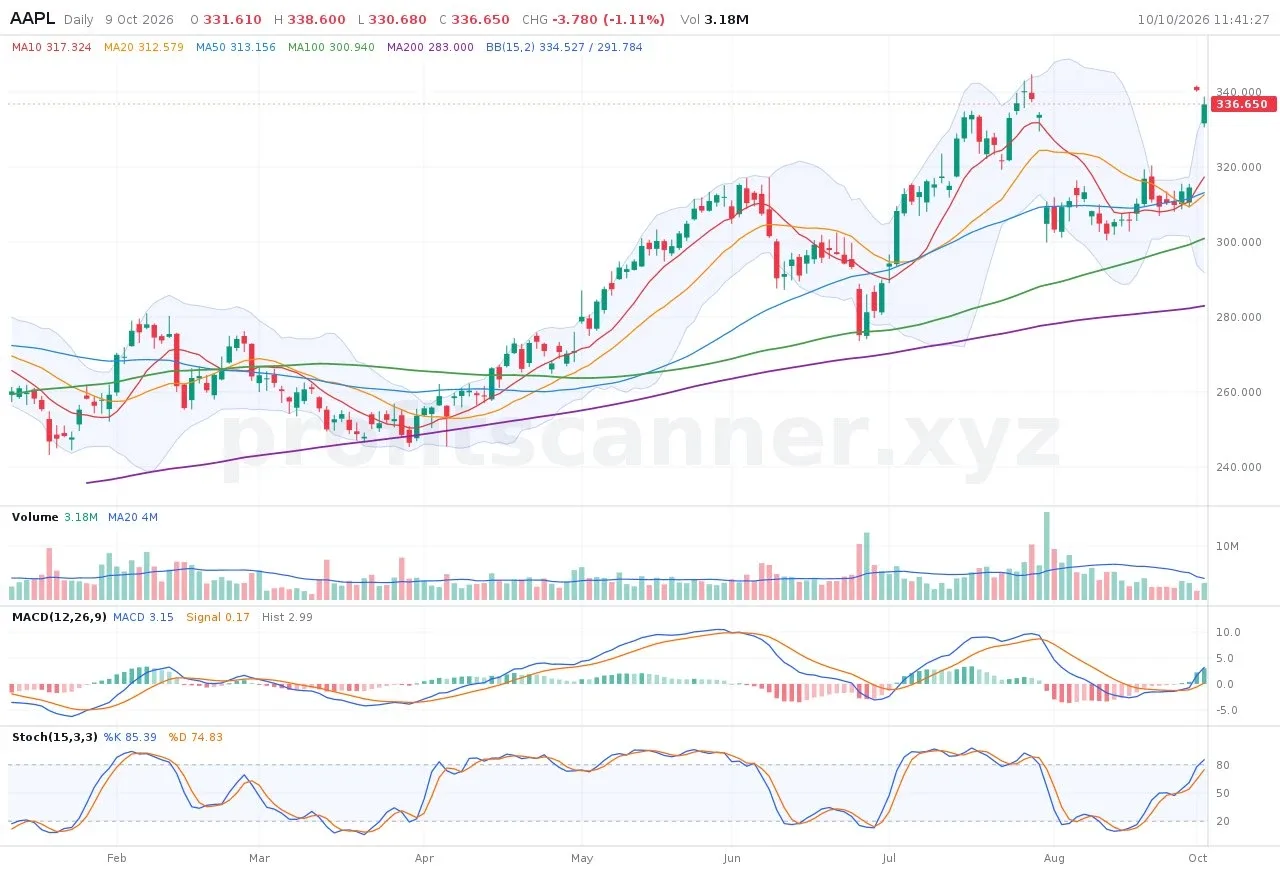

The shortest request is the symbol itself. /aapl draws the daily chart of AAPL, 200 bars, with the default indicators: five moving averages, Bollinger Bands, MACD and Stochastic.

The header shows the last bar’s open, high, low, close, change and volume. Each indicator’s legend shows its latest value, so MA10, MA20, MA50, MA100, MA200 and the Bollinger bounds are all readable without hovering anything.

Crypto pairs are requested the same way, by the pair symbol:

/btcusdt              ==> BTCUSDT, daily

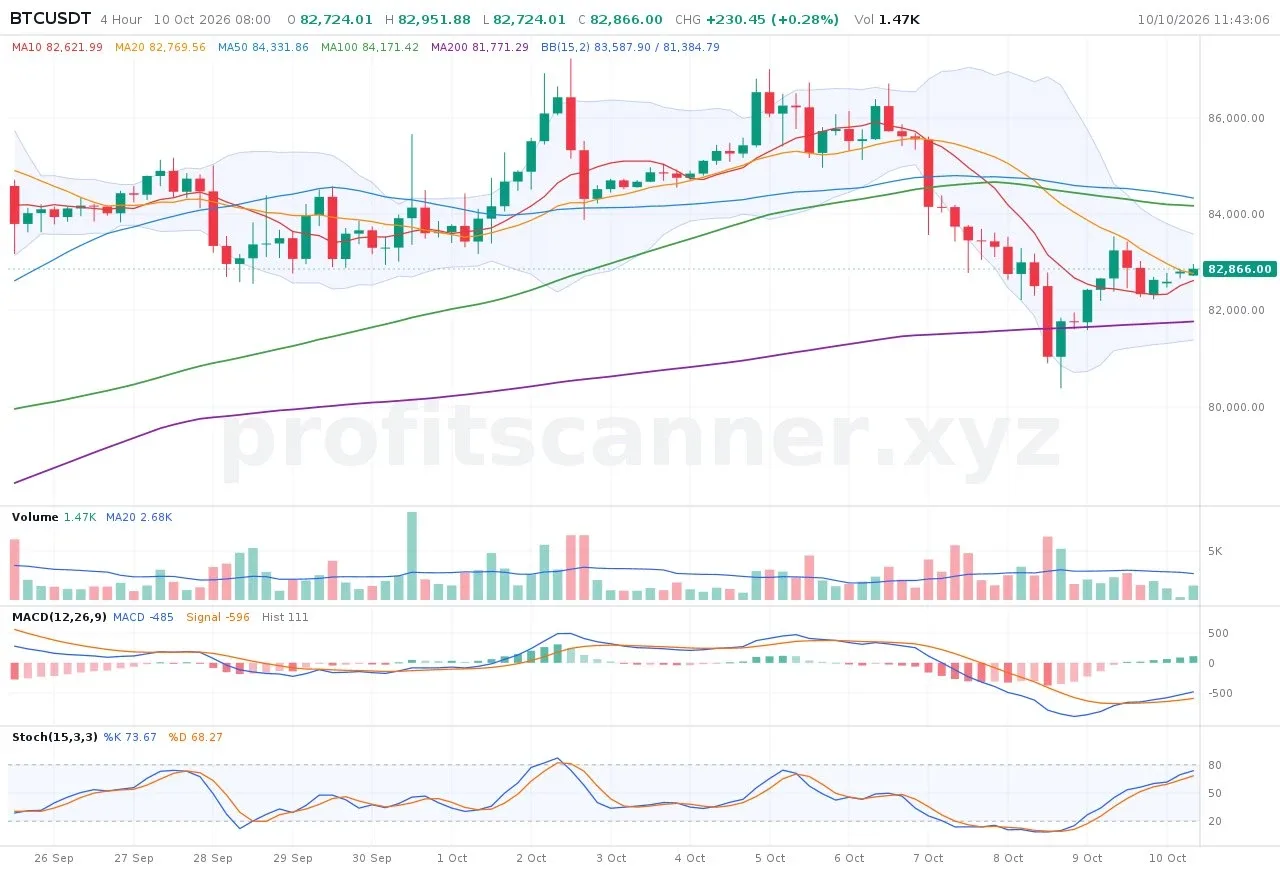

/chart btcusdt 4h     ==> BTCUSDT, 4-hour chart

Timeframes

Timeframe	Short
yearly	y
quarterly	q
monthly	m
weekly	w
daily (default)	d
4hour, 3hour, 2hour	4h, 3h, 2h
hourly	h
45min, 30min, 15min, 10min	45, 30, 15, 10
5min, 3min, 2min, 1min	5, 3, 2, 1

/nvda 30              ==> NVDA, 30-minute chart
/chart nvda 30min     ==> the same
/aapl w               ==> AAPL, weekly

The bot accepts all seventeen timeframes, which is more than the app’s own chart screen offers.

Crypto bars are timestamped in UTC, and because crypto trades continuously there are no session gaps: every hour of every day has a bar. Equity bars follow their exchange’s session, so intraday charts skip nights and weekends.

How many bars: zoom

A chart shows 200 bars unless you ask for another number, from 20 to 560. The number goes after the timeframe:

/chart aapl d 60      ==> the last 60 daily bars
/aapl 120             ==> 120 daily bars

A number right after the symbol that is also a timeframe — 1, 2, 3, 5, 10, 15, 30, 45 — is read as the timeframe: /aapl 30 is the 30-minute chart, not 30 bars.

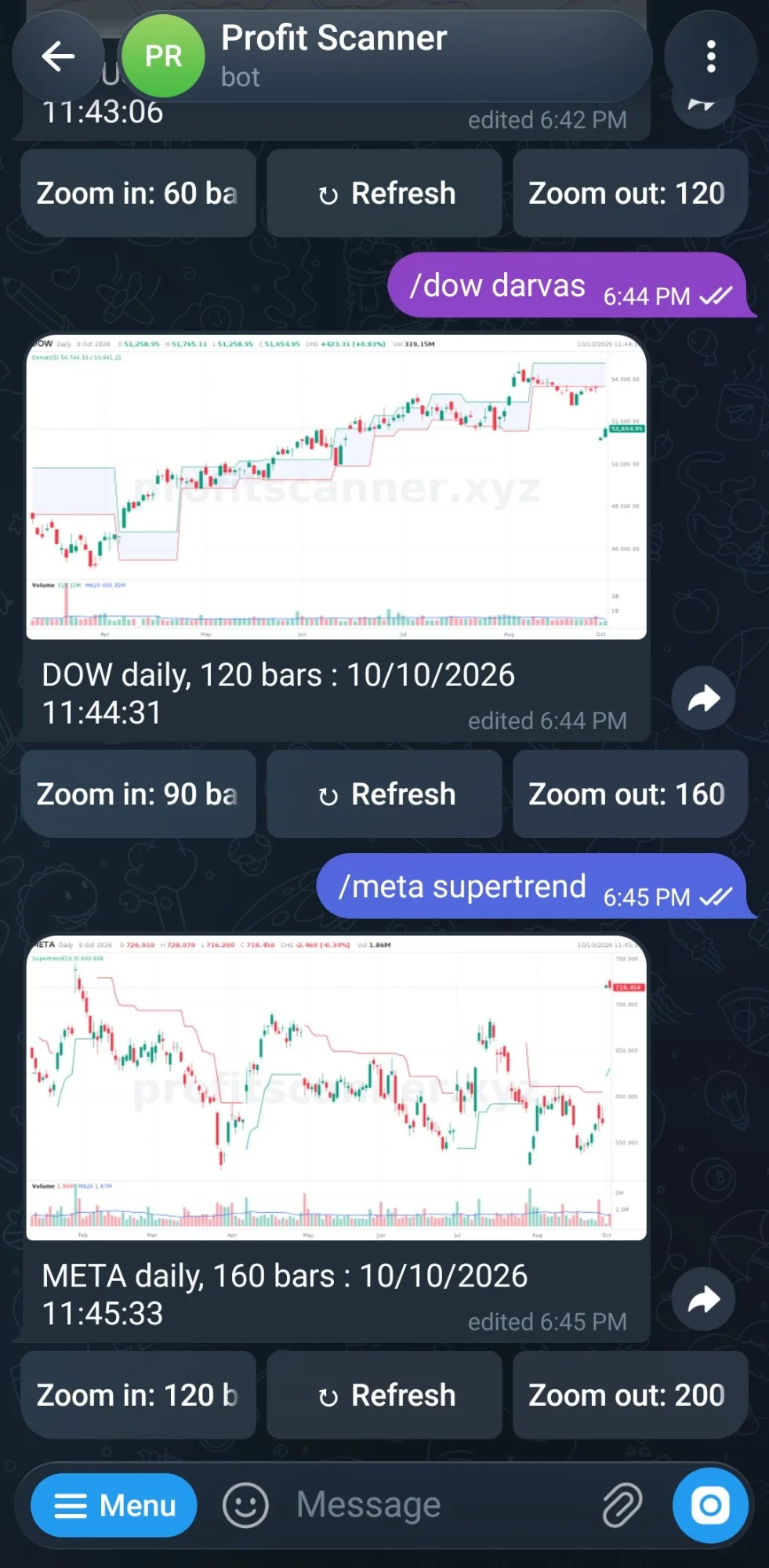

Under every chart are zoom buttons: tap them to redraw the same chart with fewer bars (zoom in) or more (zoom out), without typing the request again. The caption above the buttons says which symbol, timeframe and bar count you are looking at.

Indicators

Indicators written after the request are drawn on that chart only:

/chart msft d macd(12,26,9), rsi(14)

Over the price	Panels below the chart
sma(n), ema(n), wma(n), vwap(n)	macd(fast,slow,signal), rsi(n), stoch(n,k,d)
bb(n,k) — Bollinger Bands	dto(rsi,stoch,k,d) — DT Oscillator
keltner(n,k), donchian(n)	trix(n), cci(n), atr(n), adx(n)
psar(step,max)	mfi(n), willr(n), roc(n), obv
supertrend(n,mult), chandelier(n,mult), darvas(n)

Separate indicators with commas or spaces. A chart can have up to 6 items over the price and 4 indicator panels, besides the volume panel every chart has. Leave out the parameters to use the standard ones: rsi is rsi(14), dto is dto(14,8,5,3).

The DT Oscillator draws %K and %D in one panel, on a fixed 0–100 scale with guide lines at 20 and 80. It takes the same four parameters as the dto_stochk and dto_stochd screener functions:

/btcusdt w dto(14,14,3,3)

Darvas box, Supertrend and Chandelier Exit

Three trend tools draw the way TradingView draws them, with one word each:

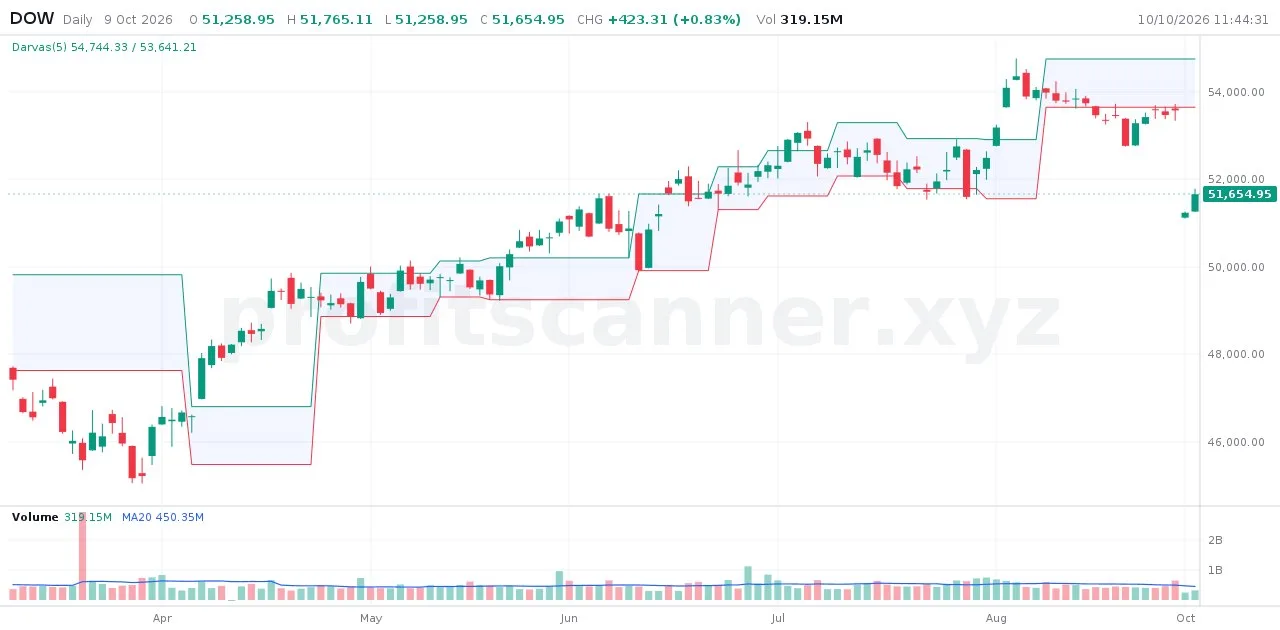

/dow darvas              ==> Darvas box, boxp 5: darvas(5)

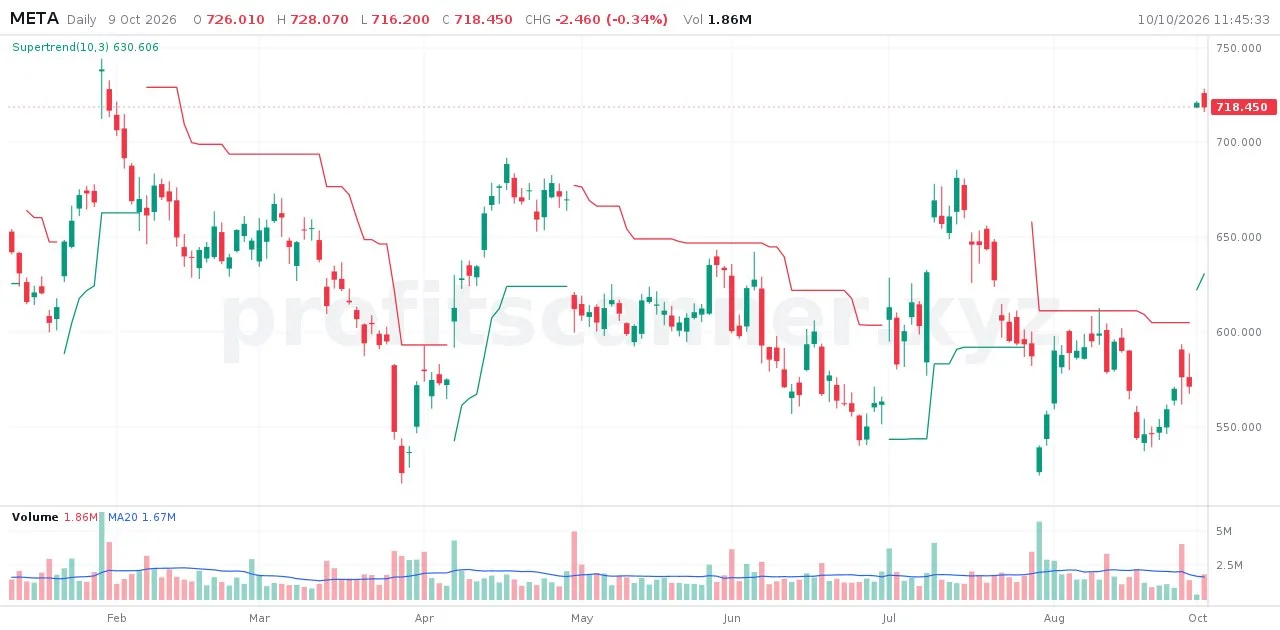

/meta supertrend         ==> Supertrend(10, 3)
/nvda chandelier         ==> Chandelier Exit(22, 3), on closes

• darvas(n) draws the box’s top in green and its bottom in red, shaded between, until the next box forms. A box forms n - 2 bars after a new high, when none of those bars went higher.
• supertrend(n,mult) draws only the line in force: green under the price in an uptrend, red above it in a downtrend.
• chandelier(n,mult) draws the stop in force: the long stop in green in an uptrend, the short stop in red in a downtrend.

The legend shows the current values. To mark where the trend turns, add a signal() with the screener function of the same name:

/btcusdt d 200 supertrend(10,3) signal(supertrend_dir(10,3) cross_up 0, up; supertrend_dir(10,3) cross_down 0, down)

The same values are available to the screener and alerts as supertrend(), supertrend_dir(), chandelier_long(), chandelier_short() and chandelier_dir(); the Darvas box as a formula is in the screener guide.

Your settings

Settings are kept for your Telegram chat and apply to every chart you request afterwards.

/indicator — your indicators for every chart.

/indicator macd(12,26,9), rsi(14), trix(15)
/indicator default           ==> back to the default indicators
/indicator                   ==> shows your list, with buttons for ready-made sets

The ready-made sets are:

• trend: ema(20), ema(50), sma(200), bb(20,2), adx(14), macd(12,26,9)
• momentum: sma(20), sma(50), rsi(14), stoch(14,3,3), macd(12,26,9)

/theme — /theme dark or /theme light.

/bars — how many bars a chart shows: /bars 120, from 20 to 560.

Telegram suggests the commands as you type /, so /ind followed by a tap is enough.

Your own formulas on the chart: tql() and signal()

Any value the screener can compute can be drawn on a chart. Formulas are written in the screener language described in Writing Screener Criteria, including its shorthand names (xu, stok, vol, …) and crosses (cross_up, cross_down).

tql(formula[,style][;formula[,style]]...[;where])
signal(condition[,style][;condition[,style]]...[;where])

• tql() draws the value of each formula: as a line (line, the default) or a histogram (hist). The formulas of one tql() share a panel.
• signal() draws an arrow on each bar where the condition becomes true: up (the default) under the bar’s low, down above its high. Add all to mark every bar where the condition holds, not only the first.

A formula reads the chart’s own bars unless it names a timeframe: on a weekly chart, sma(5) is the average of 5 weeks. A formula that names another timeframe, or another symbol, reads it as it was at each bar of the chart, never anything after it:

/aapl d tql(weekly dto_stochk(14,14,3,3); weekly dto_stochd(14,14,3,3))
/aapl w tql(sma(5); daily sma(5); over)
/ethusdt tql(close / code:btcusdt close)

That last one is worth knowing for crypto: it plots a pair against another, so you can see ETH’s strength relative to BTC rather than only its dollar price.

On a daily chart, a weekly value mid-week is the week so far, just as the screener and the alerts saw it that day. So a signal() arrow appears on the same bar an alert would have fired.

Formulas are separated by ;. The last item says where they go:

Where	tql()	signal()
panel	in a panel of its own (the default)	—
over	over the price	over the price (the default)
overvol or ovol	over the volume	over the volume
p1 … p4	—	on the first to fourth indicator panel

Several formulas in one panel

/aapl tql(ema(12); ema(26); ema(12) - ema(26), hist)

When the values in one panel differ greatly in size — here EMAs in the hundreds and their difference within a few points — each gets its own scale. The first uses the axis on the right; the second is labelled inside the panel’s left edge, a third inside the right edge, up to four scales in a panel.

Lines over the price, with buy and sell arrows

/aapl tql(ema(12), line:blue; ema(26), line:orange; over) signal(ema(12) xu ema(26), up; ema(12) xd ema(26), down)

The legend of each signal shows how many times it occurred on the bars shown.

Several signals on one bar

When more than one condition is true on the same bar, their arrows stack rather than hide each other. The condition written first is nearest the bar. Each next arrow starts halfway along the one before, so every arrow’s point stays visible. The taller the stack, the more of your conditions agree on that bar.

/btcusdt ema(20) signal(close xu ema(20), up; rsi(14) xu 50, up; macdh xu 0, up; close xd ema(20), down; rsi(14) xd 50, down; macdh xd 0, down)

On an indicator panel and over the volume, the stack grows inward from the panel’s edge.

Signals on an indicator panel

/nvda rsi(14) signal(rsi(14) xu 30, up; rsi(14) xd 70, down; p1)

p1 is the first indicator panel in the order written — here RSI. Arrows on a panel sit along its lower edge (up) and upper edge (down).

Over the volume

/msft sma(20) tql(sma(vol, 20); ovol) signal(vol > 2 * sma(vol, 20), up; ovol)

Colours

A style can be followed by a colour: line:blue, up:gold, down:navy. A histogram takes two — above and below zero — as in hist:green:red.

/ethusdt tql(macdh, hist:teal:maroon) stoch(14,3,3) signal(stok xu stod, up:blue; stok xd stod, down:orange; p2)

The colours are green, red, blue, orange, purple, teal, cyan, yellow, gold, pink, brown, lime, navy, maroon, gray, black, white, or any #rrggbb. Without one, up arrows take green, teal and blue in turn, and down arrows red, orange and purple.

Names for formulas: define, var and def()

The define and var of the screener language work in charts too. Inside a tql() or signal(), an item that starts with define or var is not drawn: it names a formula, and the formulas after it in the same brackets can use the name.

/aapl tql(define body close - open; sma(body, 5); sma(body, 20))

For names that every tql() and signal() of the chart can use, put them in def(...):

/aapl def(define fast ema(12); define slow ema(26)) tql(fast, line:blue; slow, line:orange; over) signal(fast cross_up slow, up; fast cross_down slow, down) tql(define gap fast - slow; gap, hist:green:red; sma(gap, 9), line:blue)

• In charts, ; separates the items, so a define ends at the ; after it.
• A define or var must come before the formulas that use it, and takes no style or colour.
• The legend shows the formula as you wrote it with the names: fast, sma(gap, 9).
• A name that will be read on earlier bars, as in sma(gap, 9) or a cross, must be a define, as in the screener.

Limits

• Up to 8 formulas per chart, across all its tql() and signal(); defines and vars do not count.
• A histogram cannot go over the price; put it in a panel or over the volume.
• All of a chart’s formulas together must finish within a few seconds. If a chart takes too long, zoom in to fewer bars or simplify the formulas.
• tql(), signal() and def() can be saved with /indicator like any indicator, up to 2,000 characters.

If something is not right, the bot replies with what it could not read and how it is written — the same messages as the screener.
